Nautilus

Finish Colors

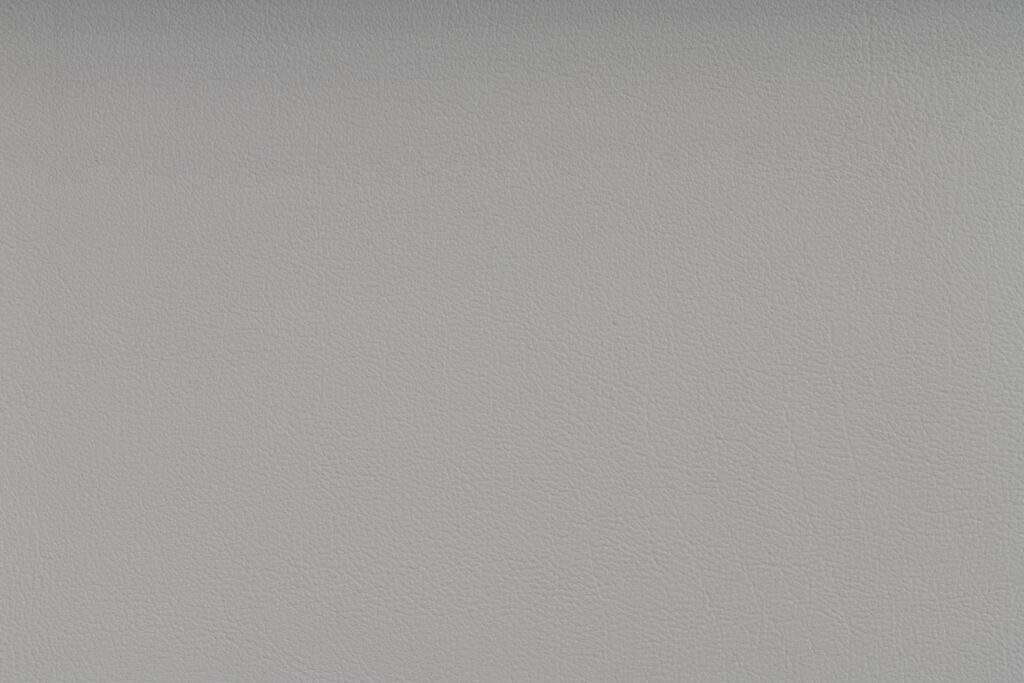

Glacier
Glacier

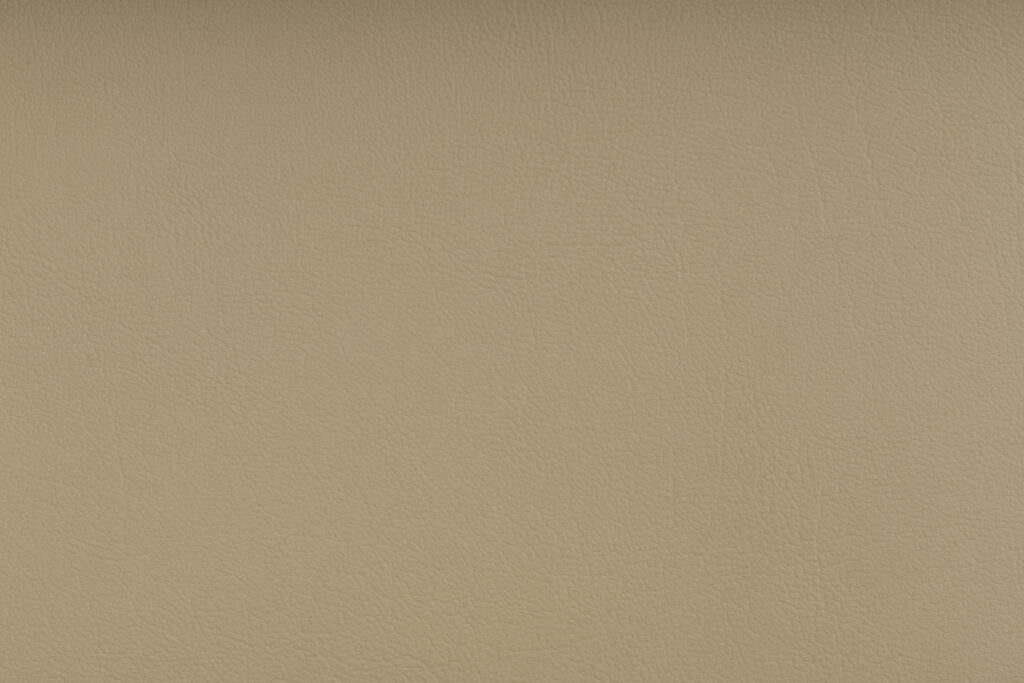

Almond
Almond

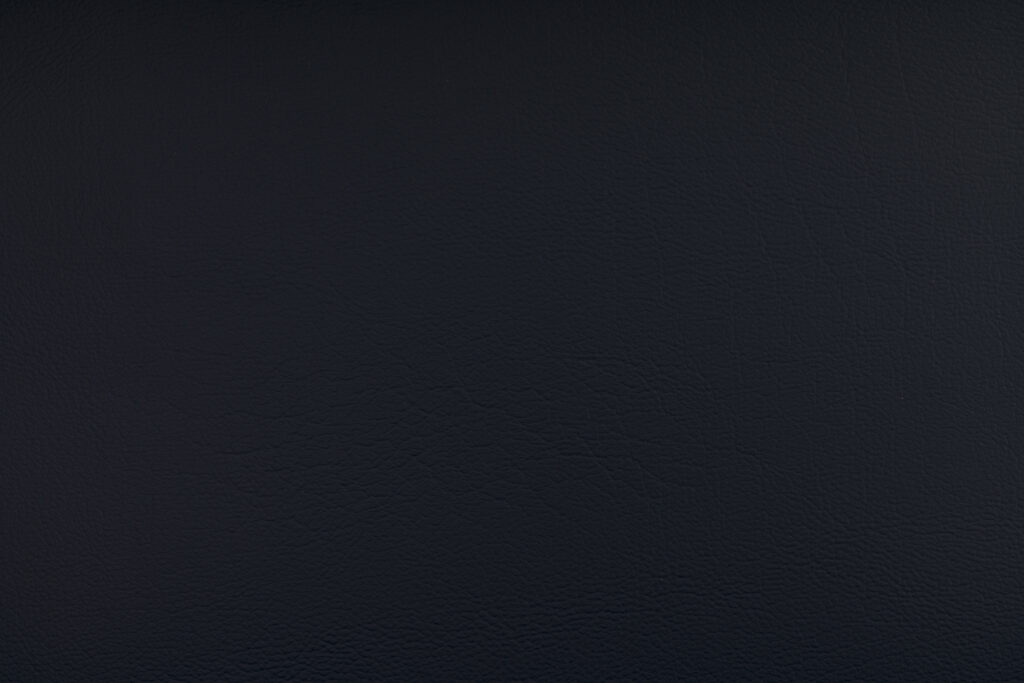

Insignia
Insignia

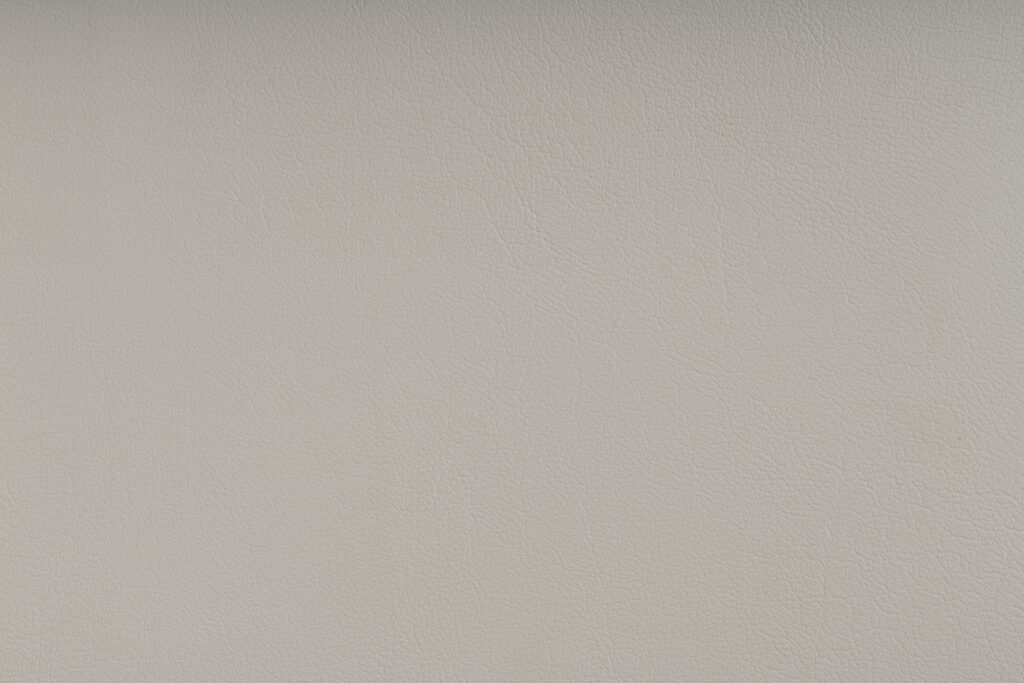

Asparagus
Asparagus

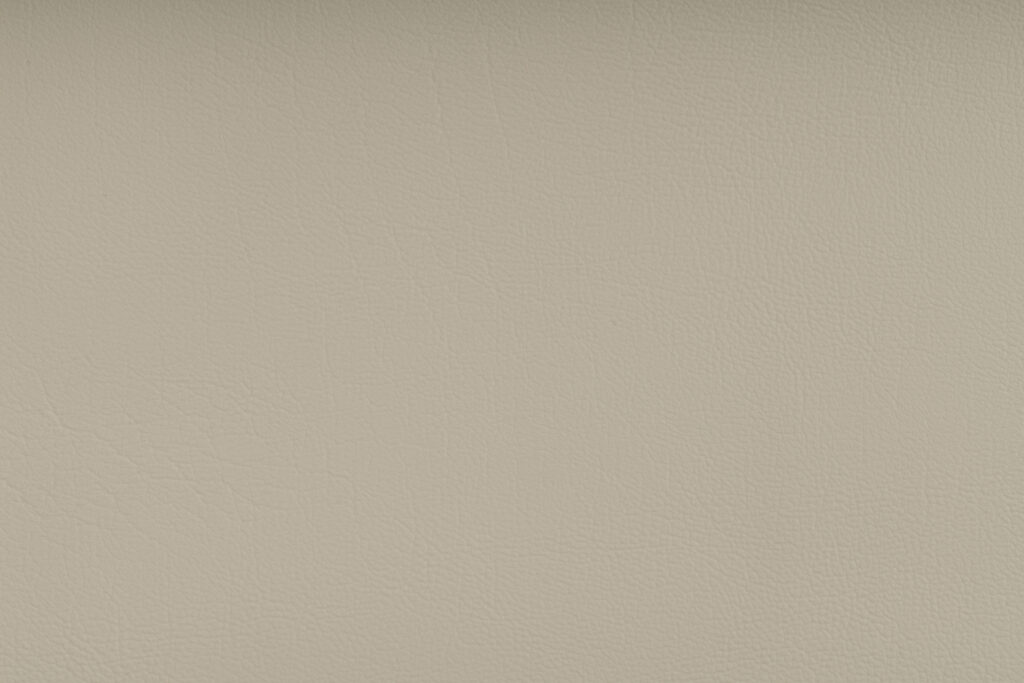

Sandshell
Sandshell

Tecnical Details:

Design:

  • Faux Leathers

Composition:

  • Vinyl Topcoat

Backing:

  • Standard Polyester

Weight:

  • 640.00gr/m2

FINISHES AND TREATMENTS

  • >100.000 cycles Martindale (EN ISO 12947:1999 Part 2)
  • Resistance UV: ISO 105 B04 ≥ 4/5 (Grey Scale)
  • UV-resistance: ISO 105 B02 ≥ 7/8 (Blue Wool Scale)
  • Cold Crack -23ºC
  • Antibacterial Protection
  • Mildew resistant backing and face
  • Sulfide Stain Resistant
  • Anti-static Finish

FLAME RETARDANCY

  • US: CAL TB 117-2013, Section E
  • US: FMVSS 302
  • US: NFPA 260 – Class 1

Vestige

Tecnical Details:

Design:

  • Faux Leathers

Composition:

  • Vinyl Topcoat

Backing:

  • Standard Polyester

Weight:

  • 640.00gr/m2

FLAME RETARDANCY

  • US: CAL TB 117-2013, Section E
  • US: FMVSS 302
  • US: NFPA 260 – Class 1

FINISHES AND TREATMENTS

  • >100.000 cycles Martindale (EN ISO 12947:1999 Part 2)
  • Resistance UV: ISO 105 B04 ≥ 4/5 (Grey Scale)
  • UV-resistance: ISO 105 B02 ≥ 7/8 (Blue Wool Scale)
  • Cold Crack -23ºC
  • Antibacterial Protection
  • Mildew resistant backing and face
  • Sulfide Stain Resistant
  • Anti-static Finish

Valencia

Tecnical Details:

Design:

  • Faux Leathers

Composition:

  • Vinyl / Urethane Topcoat

Sustainability:

  • Carbon Neutral Certified
  • EcoSense
  • Greenguard Certified
  • Indoor Air Emissions A+ Certified
  • Indoor Air Quality Certified
  • ISO 14001 Certified
  • ISO 45001 Certified
  • Reach Compliant
  • RoHs Compliant

FINISHES AND TREATMENTS

  • PERMABLOK3®
  • >300.000 cycles Martindale (EN ISO 12947:1999 Part 2)
  • UV-resistance: ISO 105 B02 ≥ 7/8 (Blue Wool Scale)
  • EN 71-3 Safety of Toys (Migration of certain elements)
  • Cold Crack -23ºC
  • Antimycotic Protection
  • Antibacterial Protection
  • Protección Antifúngica
  • Anti-stain Finish
  • Mildew resistant backing and face
  • Sulfide Stain Resistant
  • Anti-static Finish

FLAME RETARDANCY

  • AT: ÖNORM A 3800 Teil 1, Qualmbildungsklasse Q1 – schwachqualmend
  • AT: ÖNORM B 3825, Gruppe 1 – Schwerbrennbares Verhalten
  • DE: DIN 4102 B2
  • ECE Regulation No.118:03 (R118.02 Annexes 6, 7 & 8)
  • EU: EN 1021 Part 1 & 2
  • EU: EN 71-2:2006+A1:2007 – Safety of Toys – Parte 2: Flammability
  • FR: NF P 92-503/M2
  • IMO FTP 2010 Code MSC.307 (88) Part 8 3.1 & 3.2
  • IT: UNI 9175 (1987) / UNI 9175/FA1 (1994) Classe 1.IM (UNO I EMME)
  • (MED) Marine Equipment Directive (in its current valid version) 2
  • UK: UKCA
  • US: CAL TB 117-2013, Section E
  • US: ASTM E 84 Adhered – Class I
  • US: FAR 25/853
  • US: FMVSS 302
  • US: NFPA 260 – Class 1

Maglia

Tecnical Details:

Design:

  • Textile

Composition:

  • Vinyl / Urethane Topcoat

Sustainability:

  • Carbon Neutral Certified
  • EcoSense
  • Greenguard Certified
  • Indoor Air Quality Certified
  • ISO 14001 Certified
  • ISO 45001 Certified
  • ISO 50001 Certified
  • Phthalate Free
  • Reach Compliant
  • RoHs Compliant

FINISHES AND TREATMENTS

  • PERMABLOK3®
  • >100.000 cycles Martindale (EN ISO 12947:1999 Part 2)
  • Resistance UV: ISO 105 B04 ≥ 4/5 (Grey Scale)
  • UV-resistance: ISO 105 B02 ≥ 7/8 (Blue Wool Scale)
  • EN 71-3 Safety of Toys (Migration of certain elements)
  • Cold Crack -29ºC
  • Antibacterial Protection
  • Anti-stain Finish
  • Mildew resistant backing and face
  • Sulfide Stain Resistant
  • Anti-static Finish

FLAME RETARDANCY

  • AT: ÖNORM A 3800 Teil 1, Qualmbildungsklasse Q1 – schwachqualmend
  • AT: ÖNORM B 3825, Gruppe 1 – Schwerbrennbares Verhalten
  • DE: DIN 4102 B2
  • ECE Regulation No.118:03 (R118.02 Annexes 6, 7 & 8)
  • EU: EN 1021 Part 1 & 2
  • EU: EN 71-2:2006+A1:2007 – Safety of Toys – Parte 2: Flammability
  • FR: NF P 92-503/M2
  • IMO FTP 2010 Code MSC.307 (88) Part 8 3.1 & 3.2
  • IT: UNI 9175 (1987) / UNI 9175/FA1 (1994) Classe 1.IM (UNO I EMME)
  • (MED) Marine Equipment Directive (in its current valid version) 2
  • UK: UKCA
  • US: CAL TB 117-2013, Section E
  • US: FAR 25/853
  • US: FMVSS 302
  • US: NFPA 260 – Class 1

Linetex®

Tecnical Details:

Design:

  • Textile

Composition:

  • Vinyl Topcoat

Sustainability:

  • Carbon Neutral Certified
  • EcoSense
  • Greenguard Certified
  • Indoor Air Quality Certified
  • ISO 14001 Certified
  • ISO 45001 Certified
  • Phthalate Free
  • Reach Compliant
  • RoHs Compliant

Backing:

  • 100% Polyester

Weight:

  • 665.00gr/m2

FINISHES AND TREATMENTS

  • PERMACOOL
  • PERMABLOK3® PLUS
  • >100.000 cycles Martindale (EN ISO 12947:1999 Part 2)
  • Resistance UV: ISO 105 B04 ≥ 4/5 (Grey Scale)
  • UV-resistance: ISO 105 B02 ≥ 7/8 (Blue Wool Scale)
  • Cold Crack -29ºC
  • Anti-stain Finish
  • Mildew resistant backing and face
  • Sulfide Stain Resistant
  • Anti-static Finish

FLAME RETARDANCY

  • DE: DIN 4102 B2
  • EU: EN 1021 Part 1 & 2
  • IMO FTP 2010 Code MSC.307 (88) Part 8 3.1 & 3.2
  • (MED) Marine Equipment Directive (in its current valid version) 2
  • UK: UKCA
  • US: CAL TB 117-2013, Section E
  • US: FMVSS 302
  • US: NFPA 260 – Class 1

Kizuna Tweed

Tecnical Details:

Design:

  • Textile

Composition:

  • 71% PVC-Coate Polyester + 29% Solution Dyed Acrylic

Sustainability:

  • Fluorine-free
  • PFAS-Free
  • Phthalate Free

Openness Factor

  • 2,5%

Weight:

  • 420.00gr/m2

FEATURES & BENEFITS

  • Breathable

FLAME RETARDANCY

  • DE: DIN 4102 B2
  • EU: EN 1021 Part 1 & 2
  • IMO FTP 2010 Code MSC.307 (88) Part 8 3.1 & 3.2
  • US: CAL TB 117-2013, Section E

FINISHES AND TREATMENTS

  • Colour fastness to chlorinated water: EN ISO 105-E02:2010 ≥ 3/5 (Grey Scale)
  • Colour fastness to domestic or commercial laundering 30ºC: EN ISO 105-C06, 5.
  • Colour fastness to rubbing (wet/dry): EN ISO 105-X12, 5
  • Colour fastness to sea water: EN ISO 105-E02:2013 ≥ 4/5 (Grey Scale)
  • Determination of coating adhesion: 2,5 daN/cm (EN ISO 2411)
  • Determination of dimensional change in washing and drying: EN ISO 5077, +/- 0,5%
  • Elongation (warp/weft) 30/30 % (EN ISO 13934-1)
  • Elongation Under Constant Load (Warp/Weft) <1% (PAL-23)
  • Mould Resistance: 0, No growth (AATCC 30-III:2017)
  • Mould Resistance: Method B, No growth (ISO 846:2019)
  • Pilling: EN ISO 12945-2 7.000 Cycles, 4 (B)
  • Seam resistance (warp/weft) 30/30 daN (EN ISO 13935-2)
  • Sling properties
  • Spray test ≥ 70 (EN ISO 4920)
  • Tearing resistance (warp/weft): 25/25 daN (EN ISO 13937-3)
  • Tensile strength (warp/weft): 165/190 daN/5cm (EN ISO 13434-1)
  • Thermal Limits: -30ºC / +80ºC (EN 1876-1)
  • >100.000 cycles Martindale (EN ISO 12947:1999 Part 2)
  • UV-resistance: ISO 105 B04 ≥ 7/8 (Blue Wool Scale)
  • UV-resistance: ISO 105 B02 ≥ 7/8 (Blue Wool Scale)

Kizuna Checker

Tecnical Details:

Design:

  • Textile

Composition:

  • 71% PVC-Coate Polyester + 29% Solution Dyed Acrylic

Sustainability:

  • Fluorine-free
  • PFAS-Free
  • Phthalate Free

Openness factor

  • 2,5%

Weight:

  • 420.00gr/m2

FEATURES & BENEFITS

  • Breathable
  • Light Weight
  • Quick Dry
  • Reversible
  • Stays Cool
  • Thermal Stability
  • Washable
  • Water Repellent



FLAME RETARDANCY

  • DE: DIN 4102 B2
  • EU: EN 1021 Part 1 & 2
  • IMO FTP 2010 Code MSC.307 (88) Part 8 3.1 & 3.2
  • US: CAL TB 117-2013, Section E

FINISHES AND TREATMENTS

  • Colour fastness to chlorinated water: EN ISO 105-E02:2010 ≥ 3/5 (Grey Scale)
  • Colour fastness to domestic or commercial laundering 30ºC: EN ISO 105-C06, 4-5.
  • Colour fastness to rubbing (wet/dry): EN ISO 105-X12, 5
  • Determination of coating adhesion: 2,5 daN/cm (EN ISO 2411)
  • Determination of dimensional change in washing and drying: EN ISO 5077, +/- 0,5%
  • Elongation (warp/weft) 30/25 % (EN ISO 13934-1)
  • Elongation Under Constant Load (Warp/Weft) <2% (PAL-23)
  • Mould Resistance: 0, No growth (AATCC 30-III:2017)
  • Mould Resistance: Method B, No growth (ISO 846:2019)
  • Pilling: EN ISO 12945-2 7.000 Cycles, 4 (B)
  • Seam resistance (warp/weft) 30/30 daN (EN ISO 13935-2)
  • Sling properties
  • Spray test ≥ 70 (EN ISO 4920)
  • Tearing resistance (warp/weft): 15/15 daN (EN ISO 13937-3)
  • Tensile strength (warp/weft): 165/190 daN/5cm (EN ISO 13434-1)
  • Thermal Limits: -30ºC / +80ºC (EN 1876-1)
  • UV-resistance: ISO 105 B04 ≥ 7/8 (Blue Wool Scale)
  • UV-resistance: ISO 105 B02 ≥ 7/8 (Blue Wool Scale)

Kizuna Artisan

Tecnical Details:

Design:

  • Textile

Composition:

  • 71% PVC-Coate Polyester + 29% Solution Dyed Acrylic

Sustainability:

  • Fluorine-free
  • PFAS-Free
  • Phthalate Free

Openness factor

  • 3,0%

Weight:

  • 415.00gr/m2

FEATURES & BENEFITS

  • Breathable
  • Light Weight
  • Quick Dry
  • Reversible
  • Stays Cool
  • Thermal Stability
  • Washable
  • Water Repellent



FLAME RETARDANCY

  • DE: DIN 4102 B2
  • EU: EN 1021 Part 1 & 2
  • IMO FTP 2010 Code MSC.307 (88) Part 8 3.1 & 3.2
  • US: CAL TB 117-2013, Section E

FINISHES AND TREATMENTS

  • Colour fastness to chlorinated water: EN ISO 105-E02:2010 ≥ 3/5 (Grey Scale)
  • Colour fastness to domestic or commercial laundering 30ºC: EN ISO 105-C06, 5.
  • Colour fastness to rubbing (wet/dry): EN ISO 105-X12, 5
  • Colour fastness to sea water: EN ISO 105-E02:2013 ≥ 4/5 (Grey Scale)
  • Determination of coating adhesion: 2,5 daN/cm (EN ISO 2411)
  • Determination of dimensional change in washing and drying: EN ISO 5077, +/- 0,5%
  • Elongation (warp/weft) 30/30 % (EN ISO 13934-1)
  • Elongation Under Constant Load (Warp/Weft) <1% (PAL-23)
  • Mould Resistance: 0, No growth (AATCC 30-III:2017)
  • Mould Resistance: Method B, No growth (ISO 846:2019)
  • Pilling: EN ISO 12945-2 7.000 Cycles, 4-5 (A)
  • Seam resistance (warp/weft) 28/29 daN (EN ISO 13935-2)
  • Sling properties
  • Spray test ≥ 70 (EN ISO 4920)
  • Tearing resistance (warp/weft): 20/15 daN (EN ISO 13937-3)
  • Tensile strength (warp/weft): 165/185 daN/5cm (EN ISO 13434-1)
  • Thermal Limits: -30ºC / +80ºC (EN 1876-1)
  • >100.000 cycles Martindale (EN ISO 12947:1999 Part 2)
  • UV-resistance: ISO 105 B04 ≥ 7/8 (Blue Wool Scale)
  • UV-resistance: ISO 105 B02 ≥ 7/8 (Blue Wool Scale)
